Creating Reusable D3

(and a little bit about MVC)

@roland_dunn
@RefinedPractice

Co-Author Of:

Partner at:

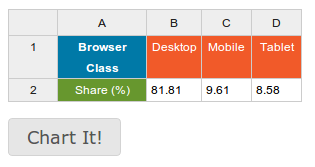

Working on D3 visualisation tool

Renders: D3, PNG, Illustrator compatible SVG

Experiments At cloudshapes.co.uk

Recent Post and Reusable Example:

http://blog.safaribooksonline.com/2013/07/11/reusable-d3-js-using-attrtween-transitions-and-mv/

From Spaghetti(ish) Code

Not instantly reusable.

To More Organised Code

Hopefully more reusable.

Modules and Components:

Build modules, components, managers.

Encapsulation is the model.

Modules and Components:

Not an unwieldy hierarchy of objects.

A module: "A reusable piece of code"



A component: "A reusable piece of code generating graphics, which doesn't represent a complete chart, but a part meant to be composed with other elements"

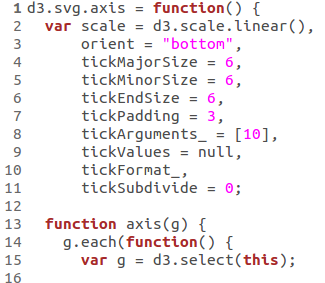

Good example of a component: d3.svg.axis

/src/svg/axis.js

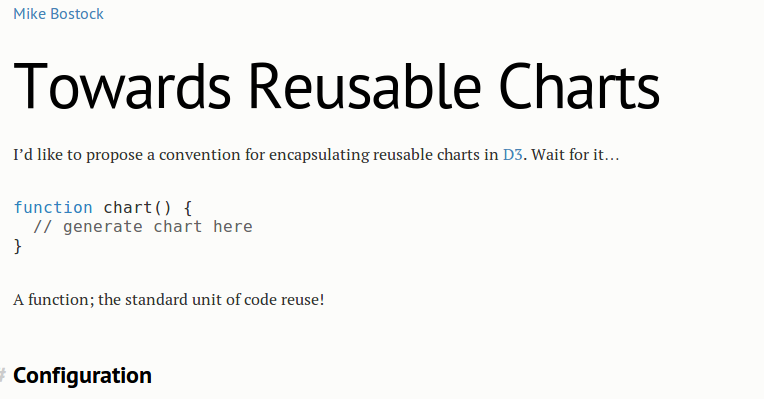

Mike Bostock: Towards Reusable Charts

http://bost.ocks.org/mike/chart/

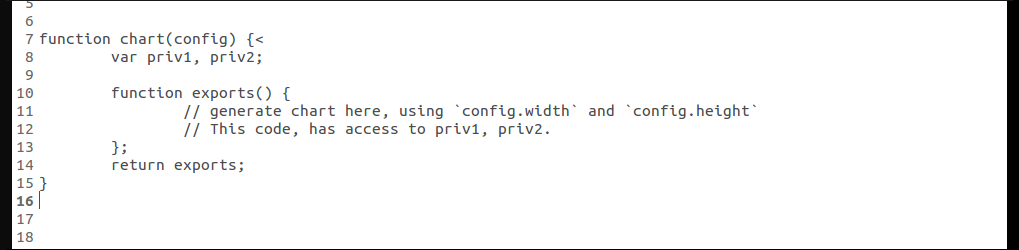

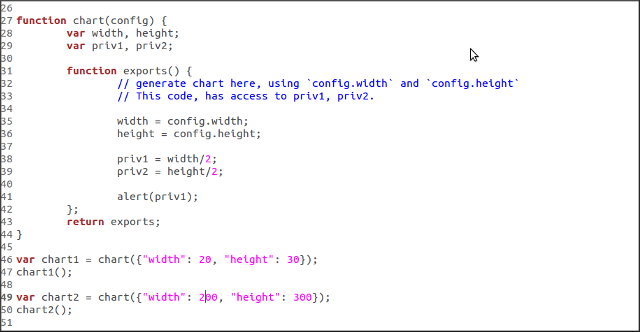

JavaScript Closures

http://jibbering.com/faq/notes/closures/

Code within exports, has access to priv1 and priv2.

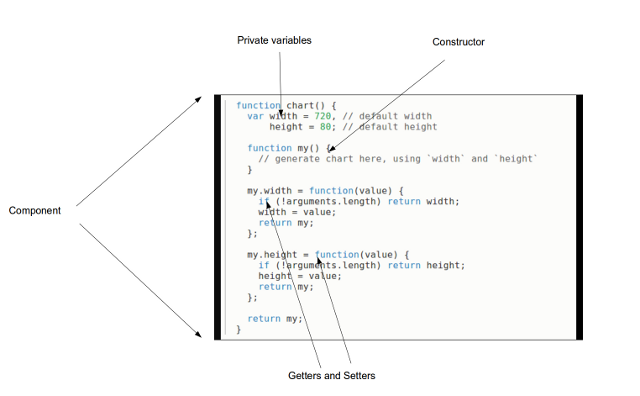

Component Structure

Using a Component:

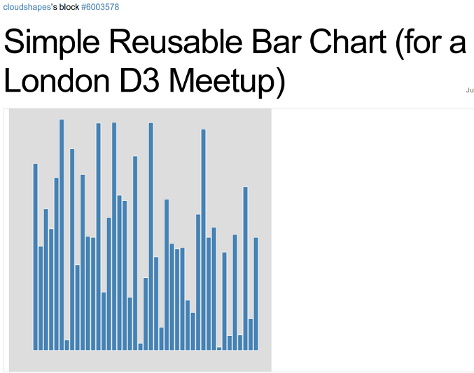

Simple Bar Chart Component:

http://bl.ocks.org/cloudshapes/6003578

Simplified example from the book.

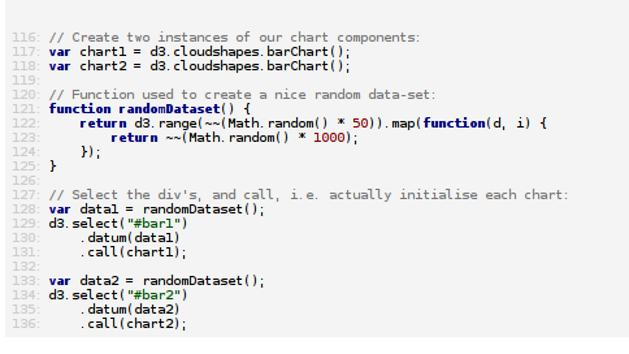

Using the Simple Bar Chart Component:

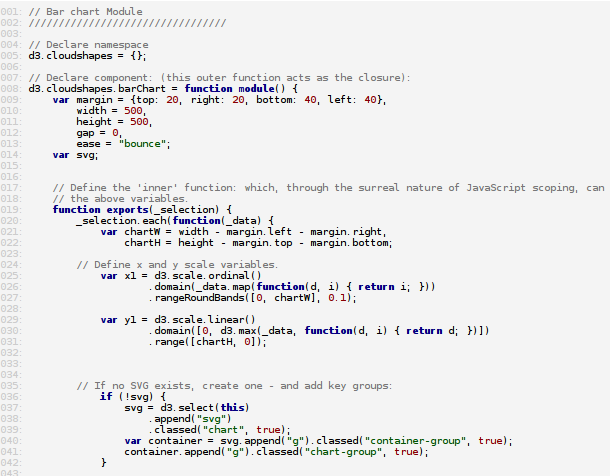

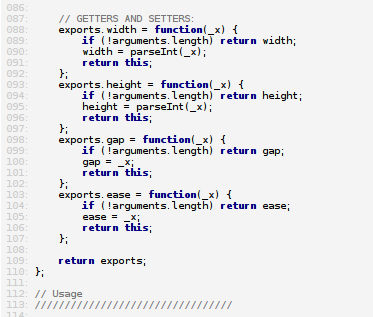

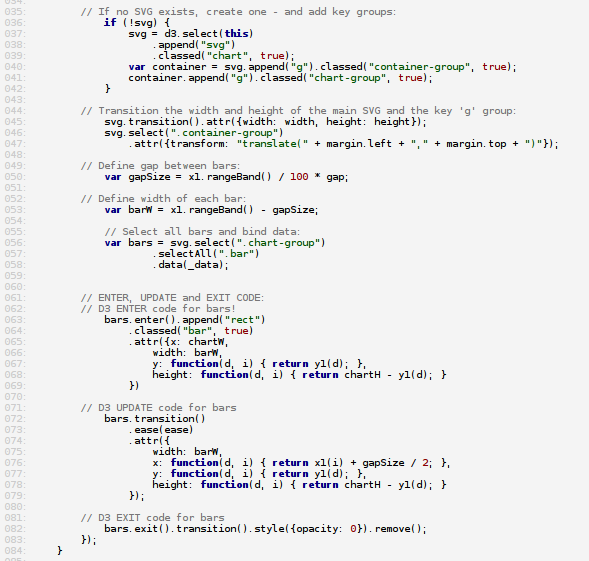

Simple Bar Chart Component:

Simple Bar Chart Component:

Simple Bar Chart Component:

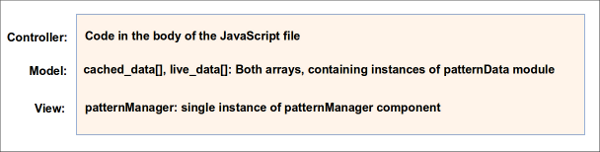

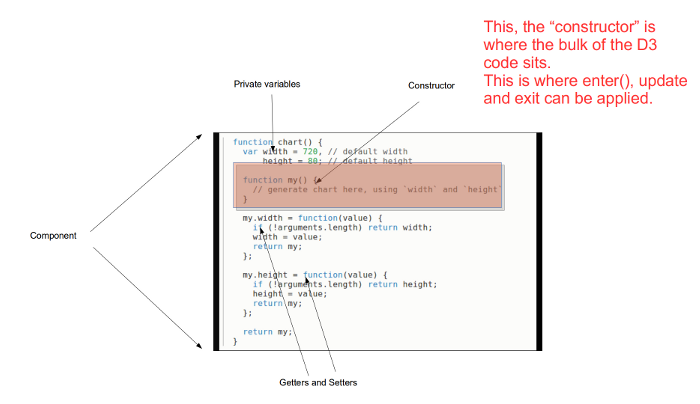

Component Structure Revisited

http://bl.ocks.org/cloudshapes/5909708

http://bl.ocks.org/cloudshapes/5909708

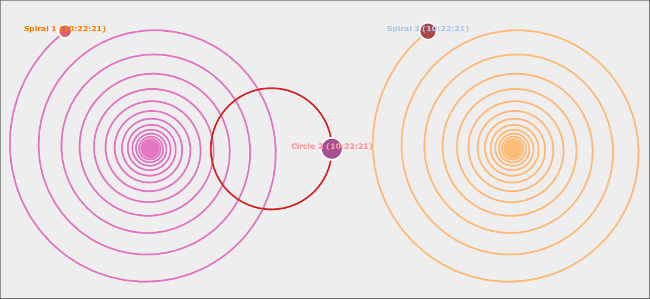

  • Creates two-to-three "patterns", where each "pattern" consists of a path that is either a circle, a spiral or a sine wave.
  • Circles navigate round the patterns paths, over different lengths of time.
  • Each circle uses random transition "ease".

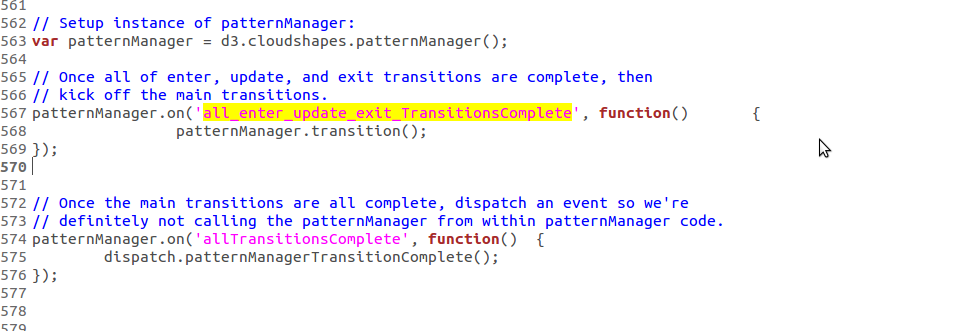

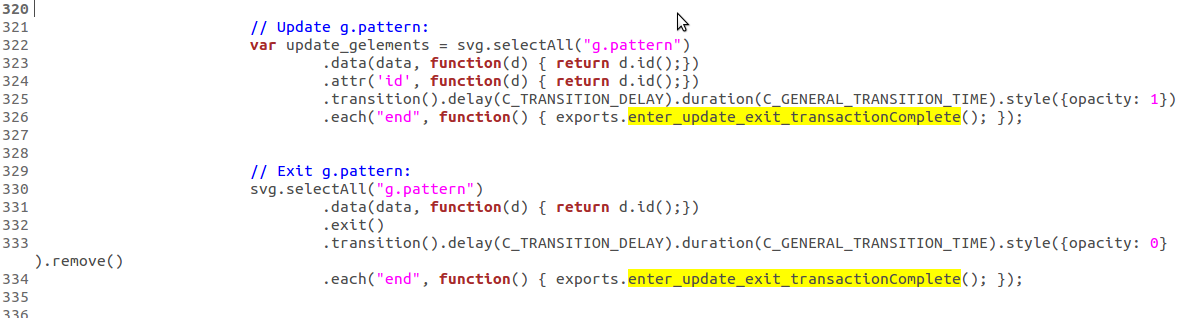

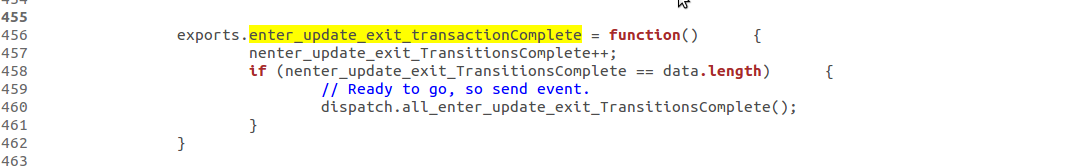

  • Main "controller" needs to wait for: (a) enter/update/exit + transitions to finish (b) each circle to complete its path

http://bl.ocks.org/cloudshapes/5909708

Events, particularly use of d3.dispatch, play a key part in co-ordinating code.

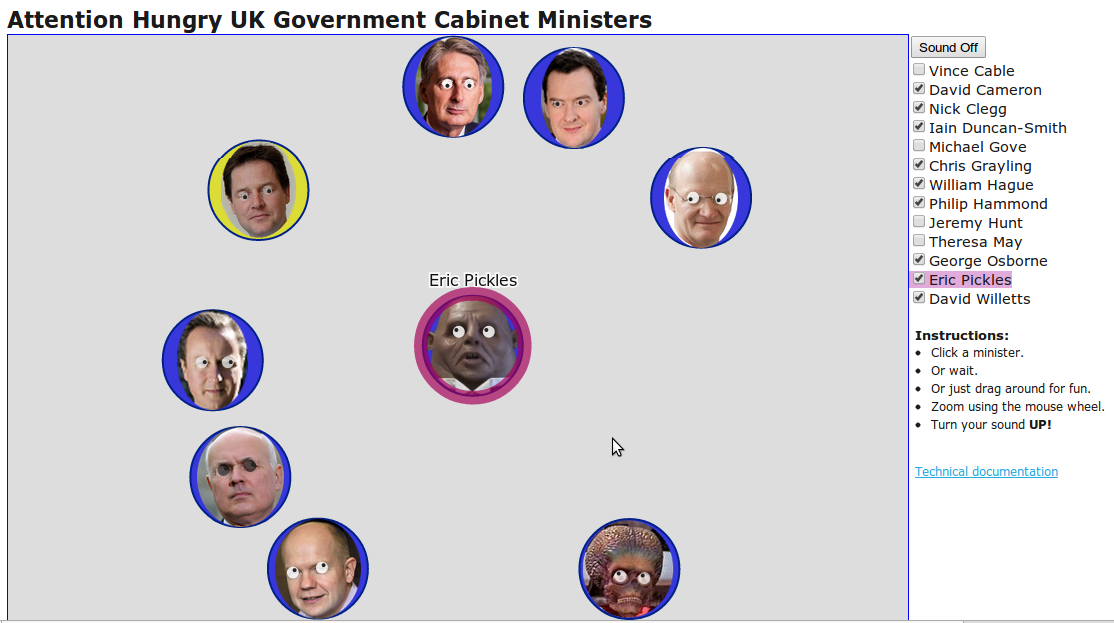

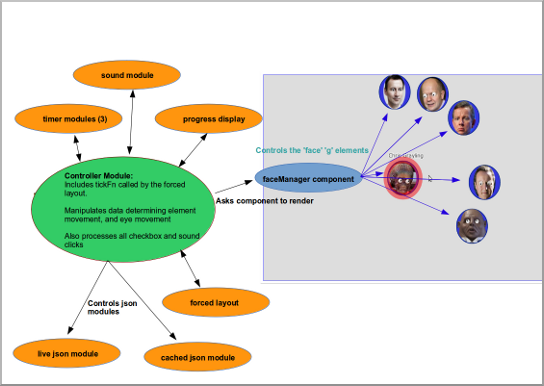

The "ministers" app uses a similar, except more developed structure:

Dev Thinking:

  • What SVG elements required? 'g', circle, path, etc
  • What JSON data objects, structured required?
  • Need new/reused data modules?
  • What visual manager component(s) required?
  • Controller: what will controller do?

D3, Backbone, Angular:

(via Chris Viau, Andrew Thornton):

  • "reusable API" pattern used to expose chart events and chart configurations.
  • MV* used for whole app architecture and messaging.
  • MV* components of angular handle all the coordination of views, and data updates.
  • Typically plugin the D3 components to respond to data updates from angular.

D3, Backbone, Angular:

(via Chris Viau, Andrew Thornton):

The simplified pattern is essentially:

  • Angular listens for data updates
  • Data update detected
  • Call D3 component to respond to new data

D3, Backbone, Angular:

(via Chris Viau, Andrew Thornton):

Chris Viau example: http://bl.ocks.org/biovisualize/5372077

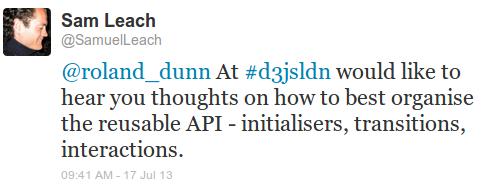

Talks re: using the reusable API with MV* framework (involving Chris Viau):

  • Initialisers: component initialisers within "constructor" of component

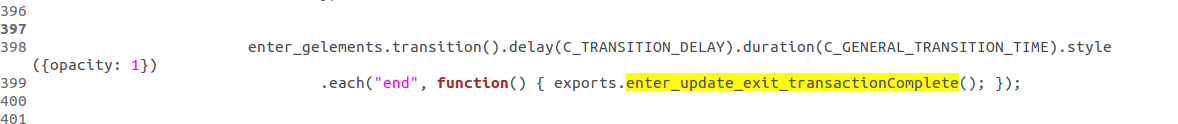

  • Transitions: If "controller" needs to know transition status, use d3.dispatch and custom events. Otherwise work within component, including using events if needs be.
  • Interactions: Can be just within component if appropriate, otherwise events to communicate with controller.

The End

Slides at:http://www.cloudshapes.co.uk/exp/london-d3-talk/

40% Discount URL for the D3 Book: https://gumroad.com/l/vyYr/$8discount

@roland_dunn
@RefinedPractice
